How to Repair Sliding Glass Door Rollers: Your Complete Houston Homeowner’s Guide
Is your sliding glass door grinding, sticking, or completely refusing to budge? Before calling a repair service in Houston, learn how to repair sliding glass door rollers yourself and save hundreds of dollars in the process.
Nothing’s more frustrating than a sliding door that won’t slide. Whether you’re dealing with a stubborn patio door or trying to fix a stuck sliding glass door that’s been driving you crazy for months, the culprit is often worn-out rollers. The good news? This is one of the most rewarding DIY repairs you can tackle, and with the right guidance, you’ll have your door gliding smoothly again in just a few hours.
Section 1: Is It Really the Rollers? The 5-Minute Diagnosis
Before diving into a sliding door wheel replacement, let’s confirm that rollers are actually your problem. These simple tests will give you a definitive answer in minutes.
The “Lift & Wiggle” Test
- Grab the door handle and lift the door slightly upward (about 1/4 inch)
- Try sliding it while maintaining the lift
- If it moves smoothly when lifted, your rollers are likely worn but not completely broken
- If there’s excessive wiggling or the door feels loose, the roller assemblies may be damaged
The “Clean Track” Test
Sometimes what feels like a roller problem is actually just debris buildup:
- Remove all visible debris from the bottom track using a vacuum
- Wipe down the track with a damp cloth
- Try sliding the door again
- If it still sticks or makes noise, you’re dealing with roller issues
Symptom Checker Table
| Symptom | Likely Cause | Urgency Level |
|---|---|---|
| Grinding/Scraping sounds | Worn out or broken rollers | High – Replace soon |
| Door hard to move but quiet | Dirty tracks or need lubrication | Low – Clean first |
| Door pops off track | Misadjusted or broken rollers | High – Safety hazard |
| Door won’t close completely | Bent track or misaligned rollers | Medium – Affects security |
| Visible gaps when closed | Rollers worn down significantly | Medium – Energy efficiency issue |
Pro Tip: If your door exhibits multiple symptoms from the table above, it’s definitely time for new rollers. Don’t wait – a door that pops off its track can be dangerous.
Section 2: The Hardest Part Made Easy: Identifying and Buying the Right Rollers
Here’s where most DIY projects fail: buying the wrong replacement parts. This section will save you multiple trips to the hardware store and ensure you get it right the first time.
Visual Identification Guide
The Most Common Roller Types:
Tandem Rollers (Double Wheels)
- Two wheels side by side
- Most common in newer sliding doors
- Better weight distribution
- Typically last longer
Single Rollers
- One wheel per assembly
- Found in older or budget doors
- Cheaper to replace
- May need more frequent maintenance
Material Types:
- Steel wheels: Durable but can rust
- Nylon wheels: Quieter operation, won’t rust
- Ball-bearing assemblies: Premium option, smoothest operation
Track Shape Compatibility:
- V-shaped track: Requires V-groove rollers
- U-shaped track: Uses flat or slightly curved rollers
“Take a Picture, Save a Headache”
Before removing anything:
- Photograph the roller assembly from multiple angles
- Measure the wheel diameter (common sizes: 1″, 1-1/4″, 1-1/2″)
- Note the mounting bracket style (screw-on vs. clip-in)
- Check for any brand markings on the door frame
Where to Buy Your Replacement Rollers
Online Retailers:
- Amazon (widest selection, fast shipping)
- Home Depot online (can ship to Houston stores)
- Lowe’s (good for matching existing hardware)
- Swisco (specialty sliding door parts)
Local Houston Options:
- Home Depot and Lowe’s locations
- Local glass shops (they often stock common rollers)
- Door and window specialists
What Information You’ll Need:
- Photos of your existing rollers
- Measurements (wheel diameter, mounting width)
- Door brand if known
- Track type (V or U-shaped)
Money-Saving Pro Tip: “Investing an extra $20-30 in stainless steel or sealed-bearing rollers can prevent you from repeating this job for 8-10 years instead of 3-4 years with basic rollers.”
Section 3: The Complete Step-by-Step Replacement Guide
Safety First: This is a two-person job. Sliding glass doors are heavy (60-100+ pounds) and can cause serious injury if dropped.
Tools You’ll Need
Essential Tools:
- Phillips head screwdriver
- Flathead screwdriver or pry bar
- Wood blocks (for supporting the door)
- Silicone spray lubricant
- Helper (absolutely mandatory)
Optional but Helpful:
- Drill with screwdriver bits
- Small level
- Flashlight or headlamp
Step 1: Removing the Door (The Safe Way)
Critical Safety Warning: Never attempt this alone. Sliding glass doors weigh 60-100+ pounds and can cause serious injury.
- Open the door completely
- Have your helper ready at the opposite end
- Locate the top adjustment screws (usually covered by plastic caps)
- Lower the door slightly by turning adjustment screws counterclockwise
- Lift the door up about 1/4 inch while your helper supports the other end
- Pull the bottom of the door toward you to remove it from the bottom track
- Carefully lower the door and set it on wood blocks
Common Mistake to Avoid: Don’t try to lift the door straight up – it needs to come up and then out at the bottom.
Step 2: Accessing the Old Rollers
With the door safely supported on blocks:
- Locate the roller assembly at the bottom of the door

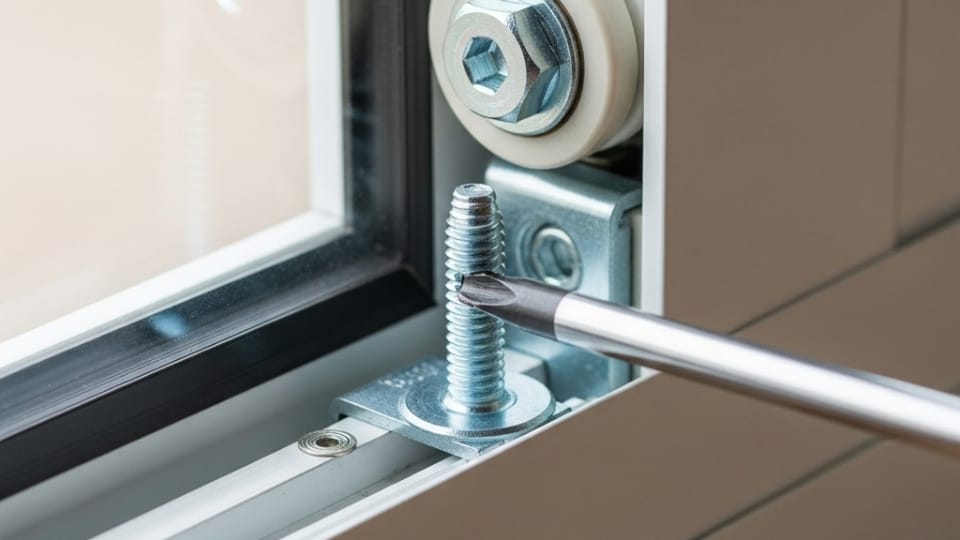

- Find the mounting screws (usually 2-3 screws per roller)
- Take another photo before removing anything
- Carefully remove the screws (they may be corroded – use penetrating oil if needed)
- Slide out the old roller assembly
Step 3: Installing the New Rollers
- Compare your new rollers to the old ones to confirm they match
- Slide the new assembly into the same position
- Install the mounting screws finger-tight first, then tighten with screwdriver
- Don’t over-tighten – this can bind the roller mechanism
Step 4: Re-hanging the Door
This is where having a helper is crucial:
- Lift the door together and position it over the bottom track
- Lower the bottom into the track while keeping the top elevated
- Push the top of the door back into the upper track
- Test the door movement – it should slide easily
Step 5: Fine-Tuning the Adjustment
The “Credit Card Test”:
- Close the door completely
- Try sliding a credit card along the gap between the door and frame
- If the gap varies significantly, use the top adjustment screws to level the door
- Turn clockwise to raise, counterclockwise to lower
Final Steps:
- Apply silicone lubricant to the track (never use WD-40)
- Test the door multiple times
- Adjust until movement is smooth and even
Section 4: Advanced Troubleshooting & FAQ
What if my track is bent or damaged?
Minor dents: Use a rubber mallet and wood block to gently straighten Significant damage: The track may need professional replacement Quick fix: Sometimes you can work around minor bends by adjusting the rollers higher
The adjustment screw won’t turn – now what?
For rusted screws:
- Apply penetrating oil (PB Blaster or Liquid Wrench)
- Wait 15-20 minutes
- Try again with gentle pressure
- If stripped, you may need to drill out and replace
I replaced the rollers, but it’s still not smooth
Check these common issues:
- Door frame may be out of square
- Track may be dirty in areas you missed
- New rollers may need a break-in period
- Weather stripping could be dragging
How do I lubricate correctly?
Do Use:
- Silicone spray lubricant
- White lithium grease (sparingly)
- Dry graphite lubricant
Never Use:
- WD-40 (attracts dirt and can gum up)
- Oil-based lubricants
- Household oils
Application:
- Clean the track thoroughly first
- Apply lubricant to the track, not the rollers
- Work the door back and forth several times
- Wipe away excess to prevent dirt accumulation
Frequently Asked Questions
Q: How often should I replace sliding door rollers? A: Quality rollers should last 8-10 years with proper maintenance. Budget rollers may need replacement every 3-5 years.
Q: Can I replace just one roller if only one is broken? A: It’s better to replace both rollers at the same time to ensure even door operation and prevent premature wear on the new roller.
Q: My door is 20+ years old. Are parts still available? A: Many roller designs are standardized. Even if you can’t find exact matches, universal rollers often work with minor modifications.
Q: Should I hire a professional in Houston instead? A: If you’re comfortable with basic home repairs and have a helper, this is an excellent DIY project. Professional replacement typically costs $200-400 in the Houston area.
Section 5: Mission Accomplished – Your Door Slides Like New
Congratulations! You’ve just completed one of the most satisfying home repairs possible. Your sliding glass door should now glide effortlessly, operate quietly, and provide years of trouble-free service.
Quick Maintenance Tips for Long-Term Success
- Monthly: Vacuum the track and wipe down with a damp cloth
- Quarterly: Apply silicone lubricant to the track
- Annually: Check roller adjustment and tighten any loose screws
- As needed: Replace weather stripping when it shows wear
About the Author
This guide was written by experienced home improvement professionals who have completed hundreds of sliding door repairs across the Houston area. We believe in empowering homeowners with the knowledge and confidence to tackle their own repairs safely and successfully.
Did this guide help you successfully fix your stuck sliding glass door? Leave a comment below with the type of rollers you used and any tips you discovered during your repair. Your experience could help the next Houston homeowner who’s struggling with the same issue!
Need more home repair guidance? Check out our related articles on [door maintenance], [weather stripping replacement], and [home security improvements].
Remember: If at any point you feel uncomfortable with this repair or encounter unexpected complications, there’s no shame in calling a professional. Your safety is always the top priority.
